Base



A handful of pieces for multiple uses. This is the concept behind Base, a modular system devised to create protected individual or relational spaces in open-plan and co-working offices or multi-tasking areas.

You can create places for meetings, focusing attention, relaxing or getting involved. Privacy when needed, interaction and sharing when the moment calls for it.

A free-standing, sound absorbing and modular system, which can be put together freely to suit specific requirements.

A recreated space.

If interested, please contact us

*Required fields

Gallery

Strengths

  • A modular system devised to create protected individual or relational spaces in open-plan and co-working offices or multi-tasking areas.
  • You can create places for meetings, focusing attention, relaxing or getting involved.
  • A free-standing, sound absorbing and modular system, which can be put together freely to suit specific requirements.

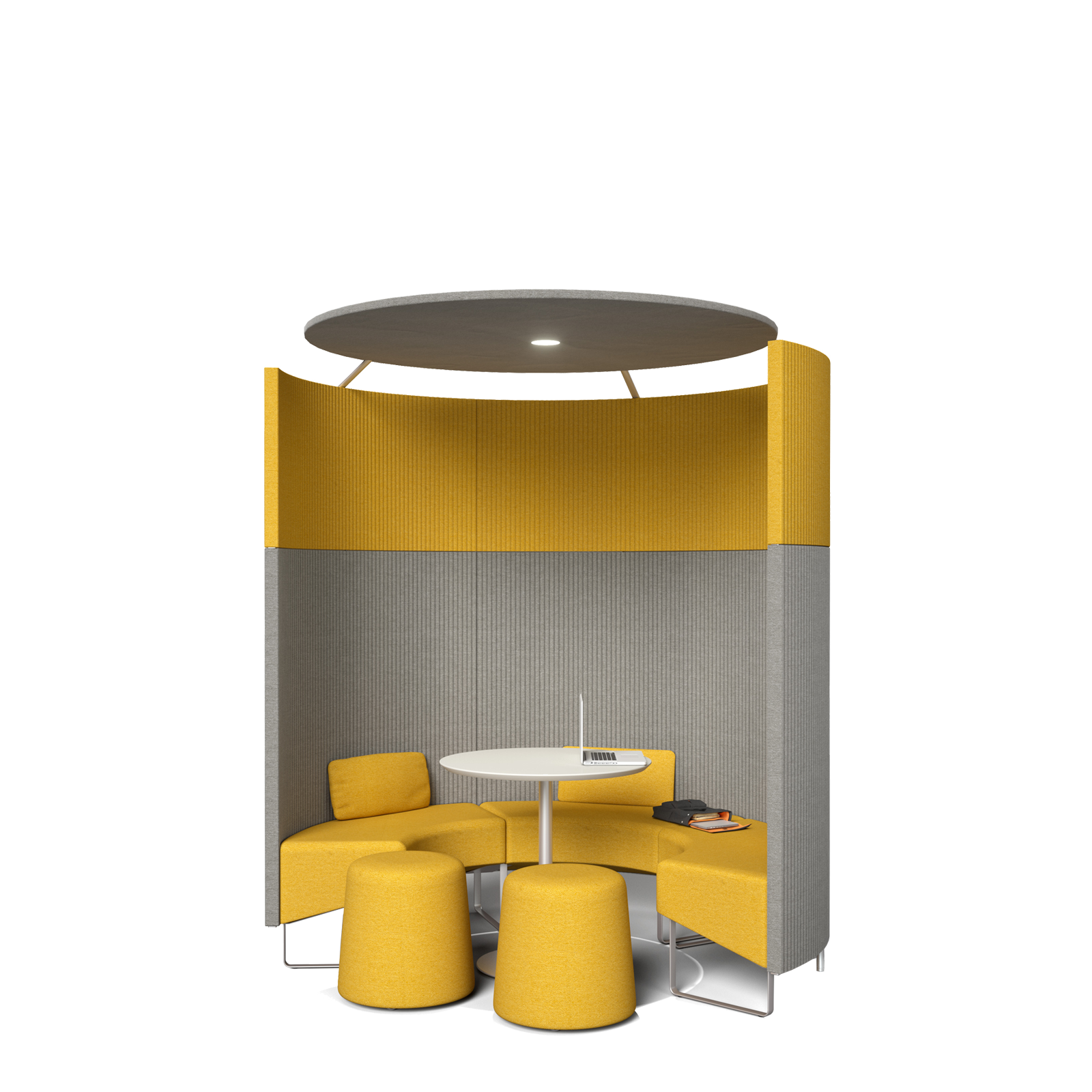

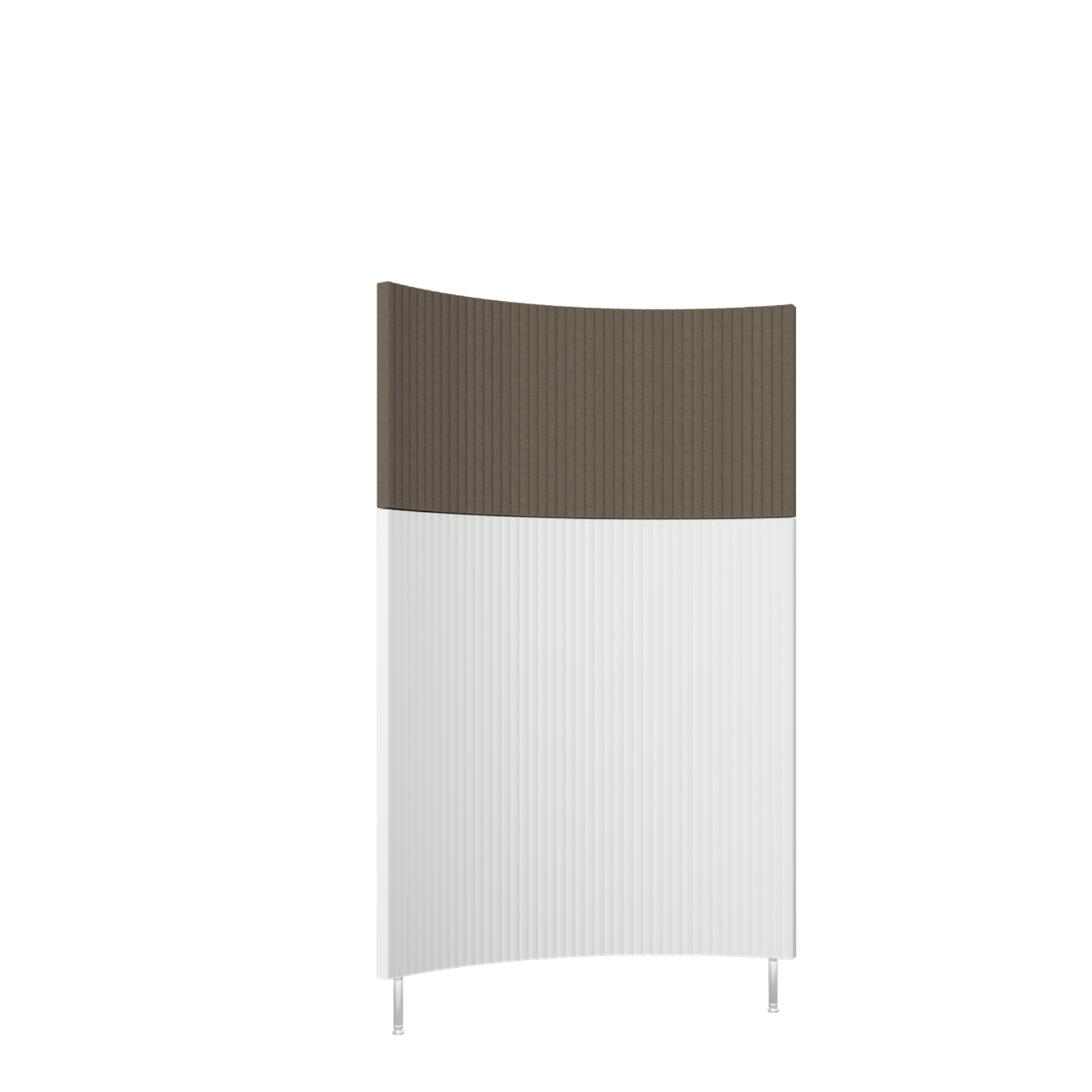

  • The system is composed by: modular curved wall, circular roof wall fixture with white coated steel supports, curved wall extension, curved sofa for wall, curved sofa, circular sofa, rectangular sofa.
  • Optional accessories: LED lighting system, USB recharge and mains connection cable with Italian plug, side table, puof with castors and self-braking system.



    Acoustic test



    60% of the waves reflected in highly-reverberant environments come from the ceiling. This is why Base can features a curved wall with extension, but especially a “Canopy” which enhances its performance.

    Total acoustic comfort to hold a clearly understood conversation

    We acoustic tested Base in an accredited laboratory.

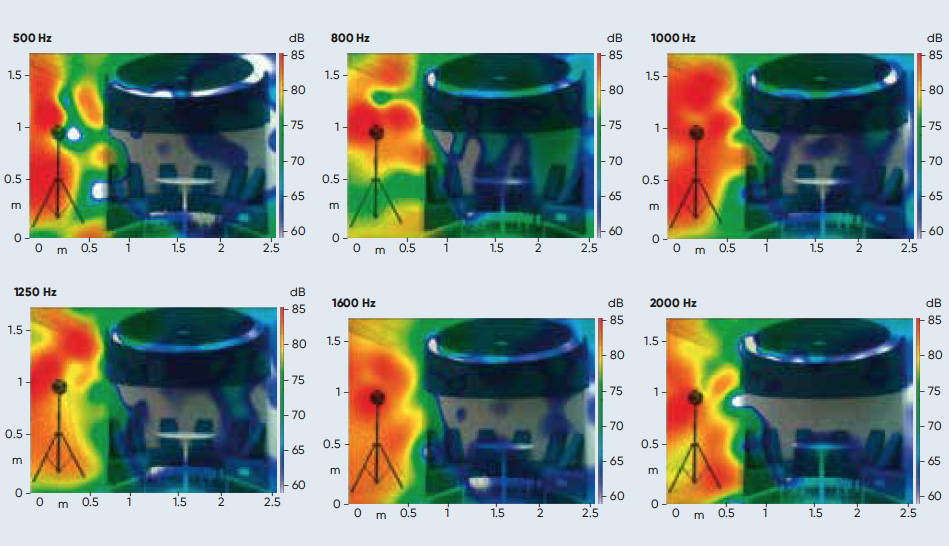

    On the side, the graphs of Base module with extension wall and canopy subjected to sources of strong external noise.

    Designer

    Frigerio Design Group



    Enrico Frigerio was born in Turin. In 1980 he graduated in Architecture in Genova and learned his trade working side by side with Renzo Piano.

    Manufacturing features

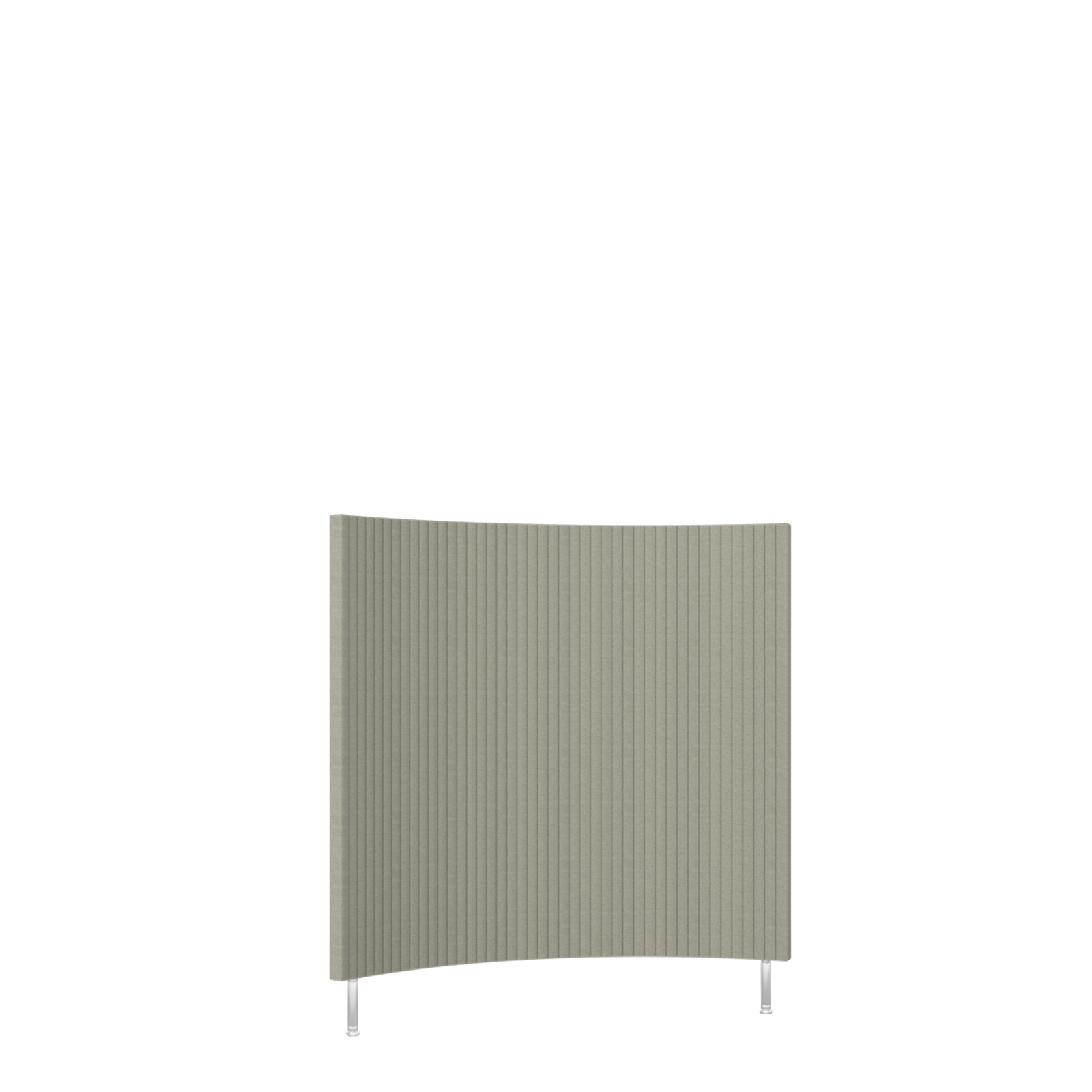

    • The frame of the curved wall is in multilayer wood and vegetable fiber panels, upholstered with ribbed Trevira fabric. The fixed feet are in chrome plated steel and adjustable height, mounted on a tubular structure painted white color.
    • The padded armchair is on a legs frame in drawn flat steel with rounded edges, painted in white color,
      equipped with non-slip felt pads, it is fixed to the wall by means of a bayonet steel hook. The inner
      frame is composed of a multilayer load-bearing structure and panels made of wood particles, with
      infill panels made of vegetable fiber panel. The padding is in self-extinguishing polyurethane foam
      with a density of 50 kg / mc3.
    • The connecting walls are connected with a galvanized steel pin with fast coupling.

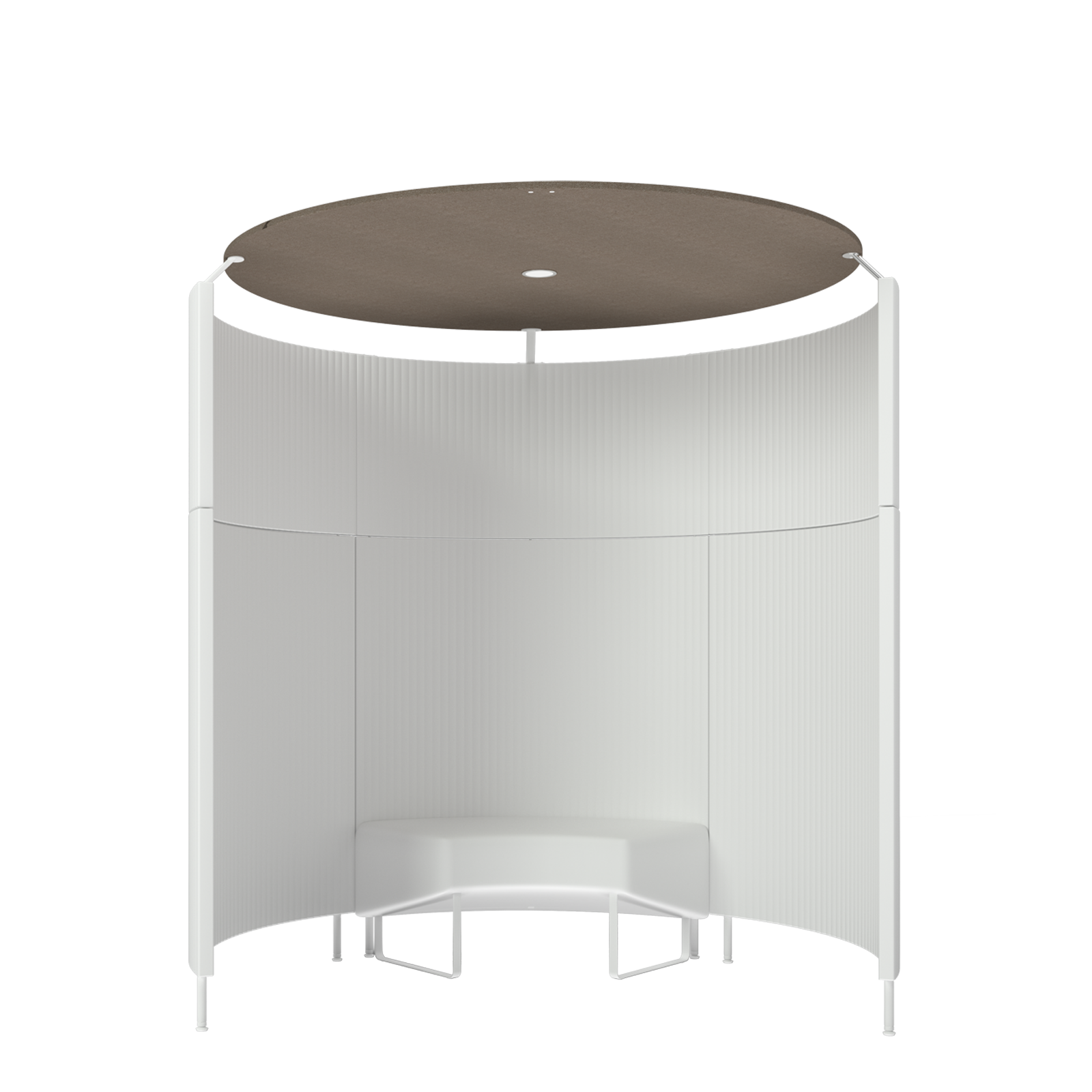

    • The extra round roof it is in wood conglomerate upholstered with Trevira fabric and fixed to the walls with steel supports painted white.
    • The cushion as lumbar support, is standard on the version armchair with wall, and it is made of selfextinguishing
      polyurethane with a density of 50 kg / mc3.
    • The padded armchairs have a legs frame in drawn flat steel with rounded edges, painted in white color, equipped with non-slip felt pads. The internal frame is composed of a multilayer load-bearing structure and panels made of wood particles. The padding is in self-extinguishing polyurethane foam with a density of 50 kg/mc3.
    • The ottoman has a seat conical trunk shape with rounded edges. The internal frame is composed from a load-bearing structure in plywood and from infill panels made of vegetable fiber panel. On the base there are 5 swivel self-breaking castors. The padding is in self-extinguishing polyurethane foam with a density of 50 kg/mc3.
    • The table is made with a circular top in a particle board panel clad in white plastic laminate with a matching ABS edge, mounted on a metal structure with circular foot in 55cm steel, painted white.

    Dimensions (cm)

    SINGLE MODULE

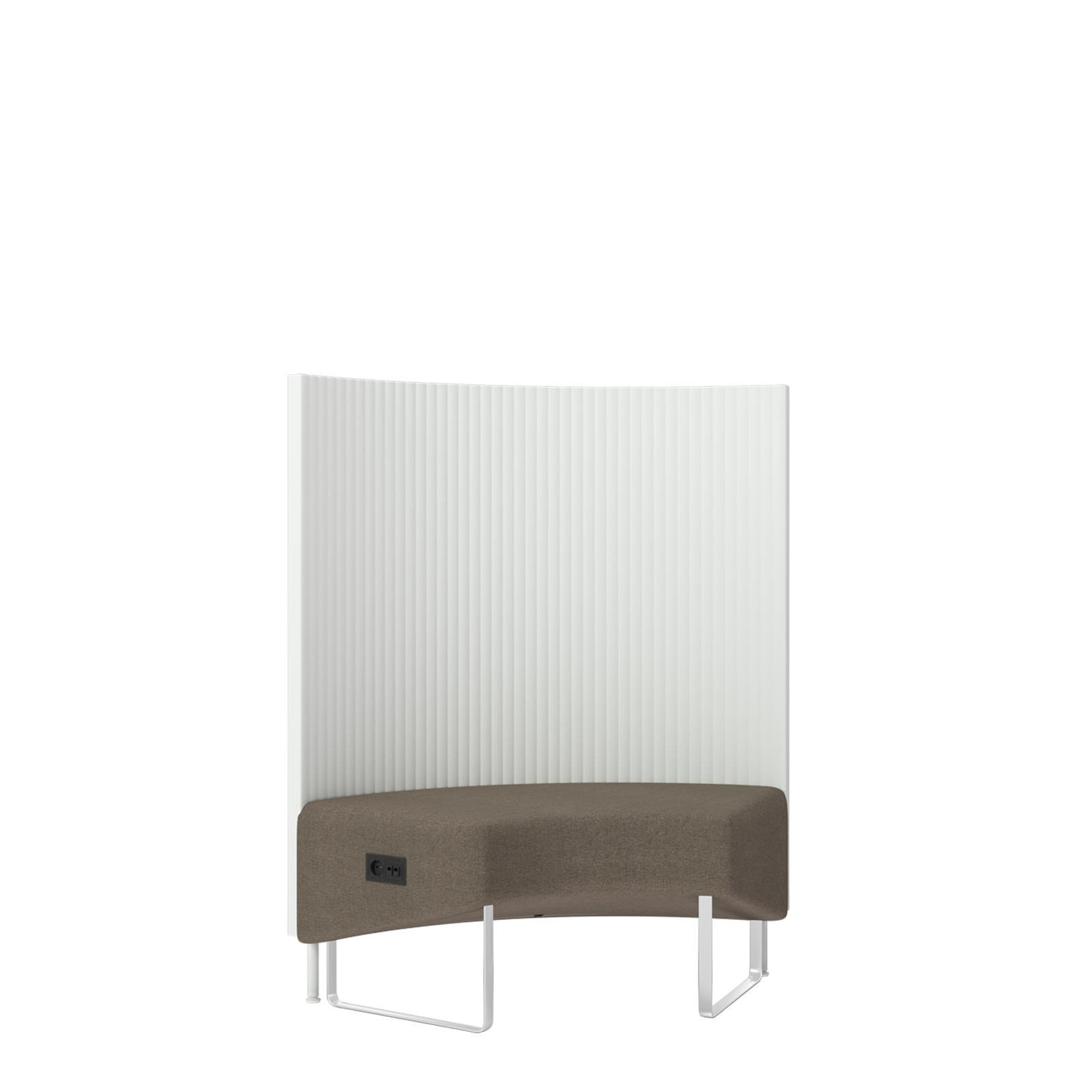

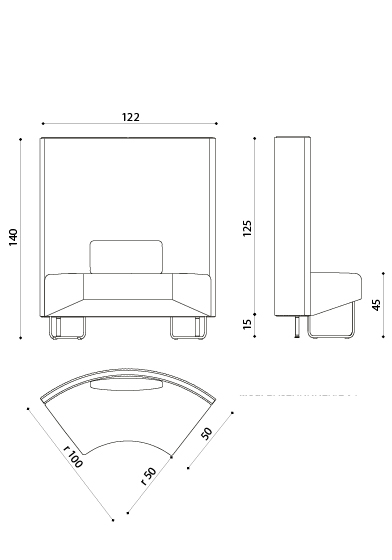

    Modular curved wall with curved sofa

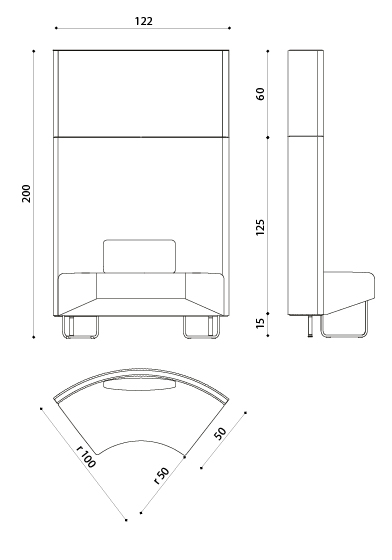

    Modular curved wall with extension and sofa

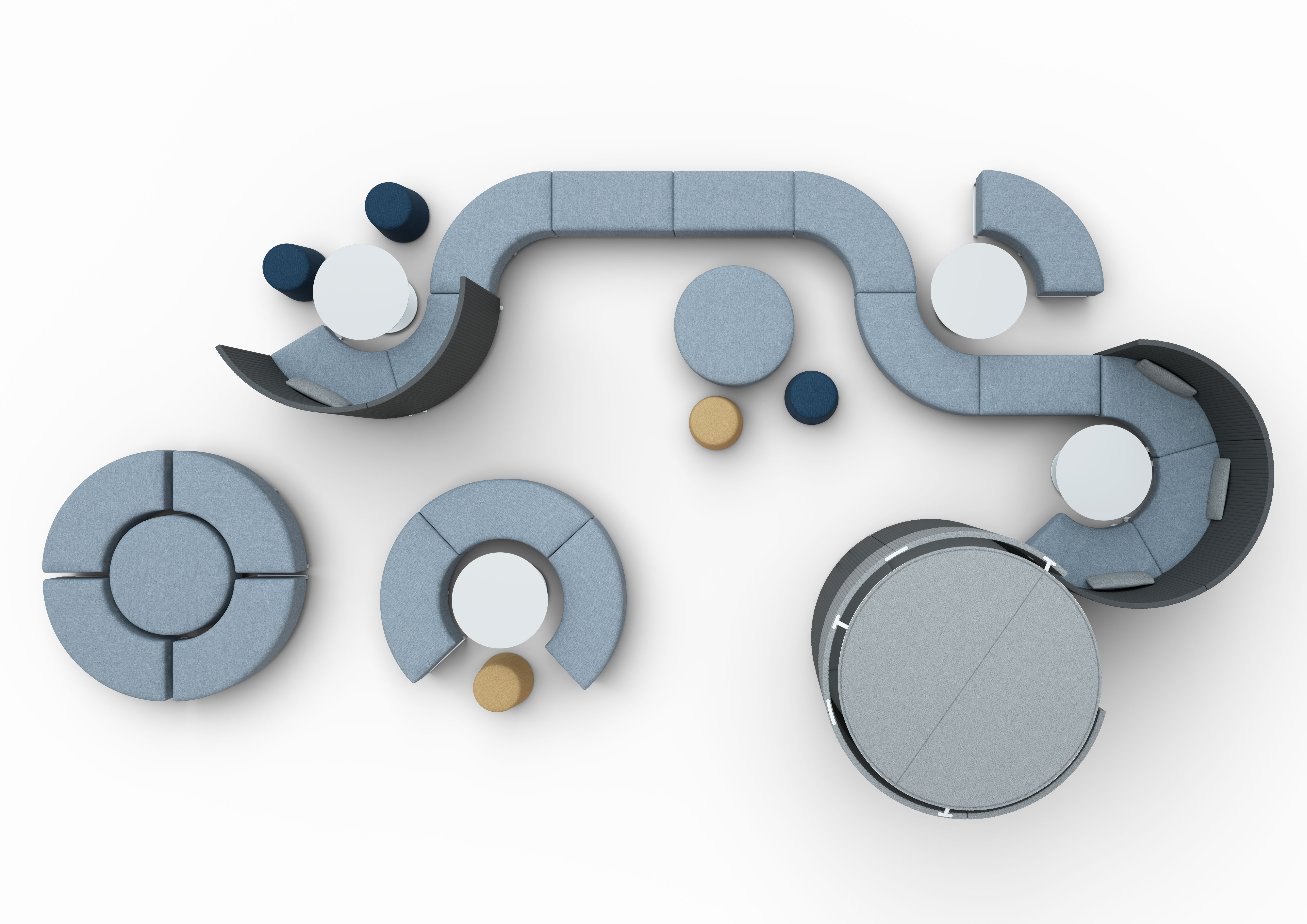

    COMPOSITIONS

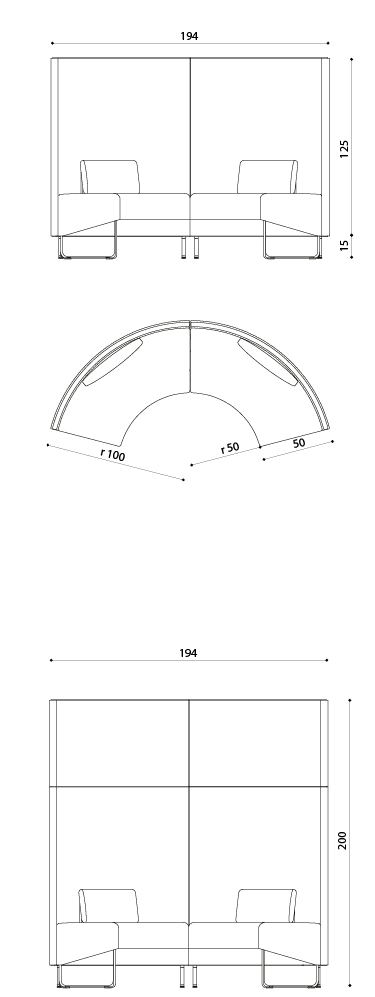

    2 sofas

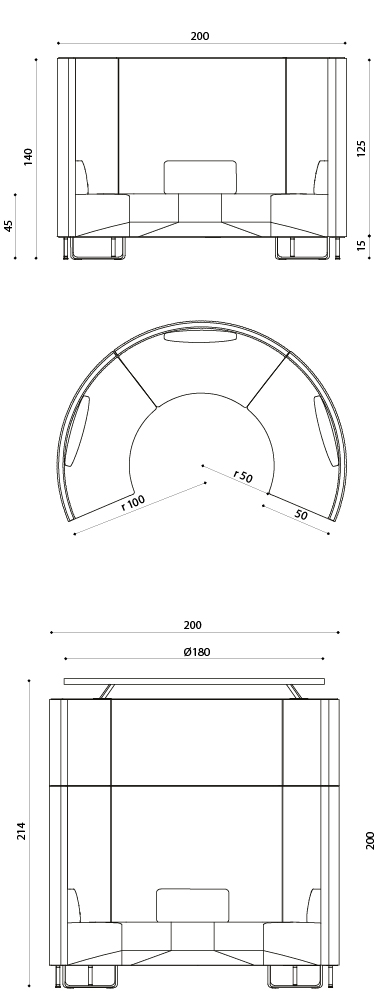

    3 sofas

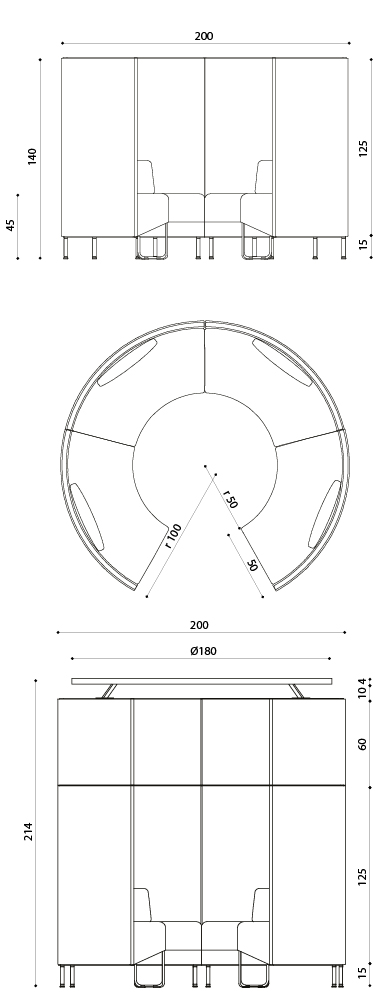

    4 sofas

    DIVANETTI

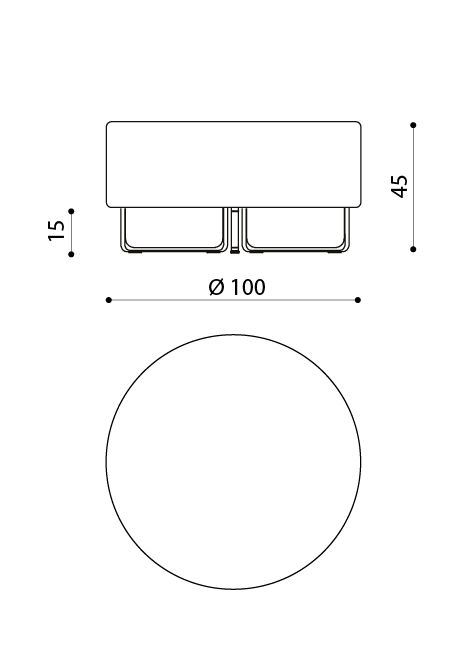

    rotondo

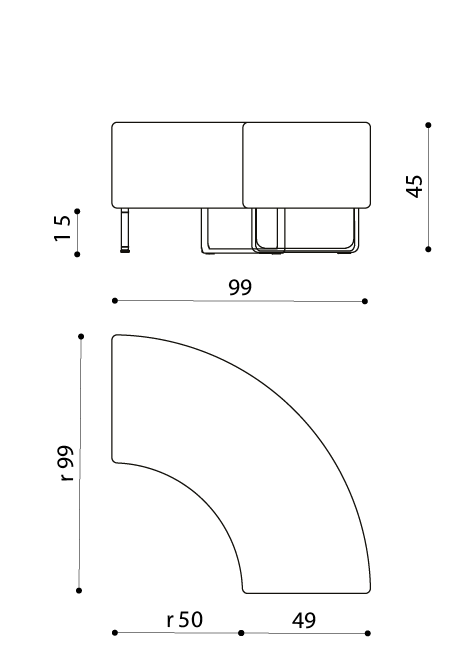

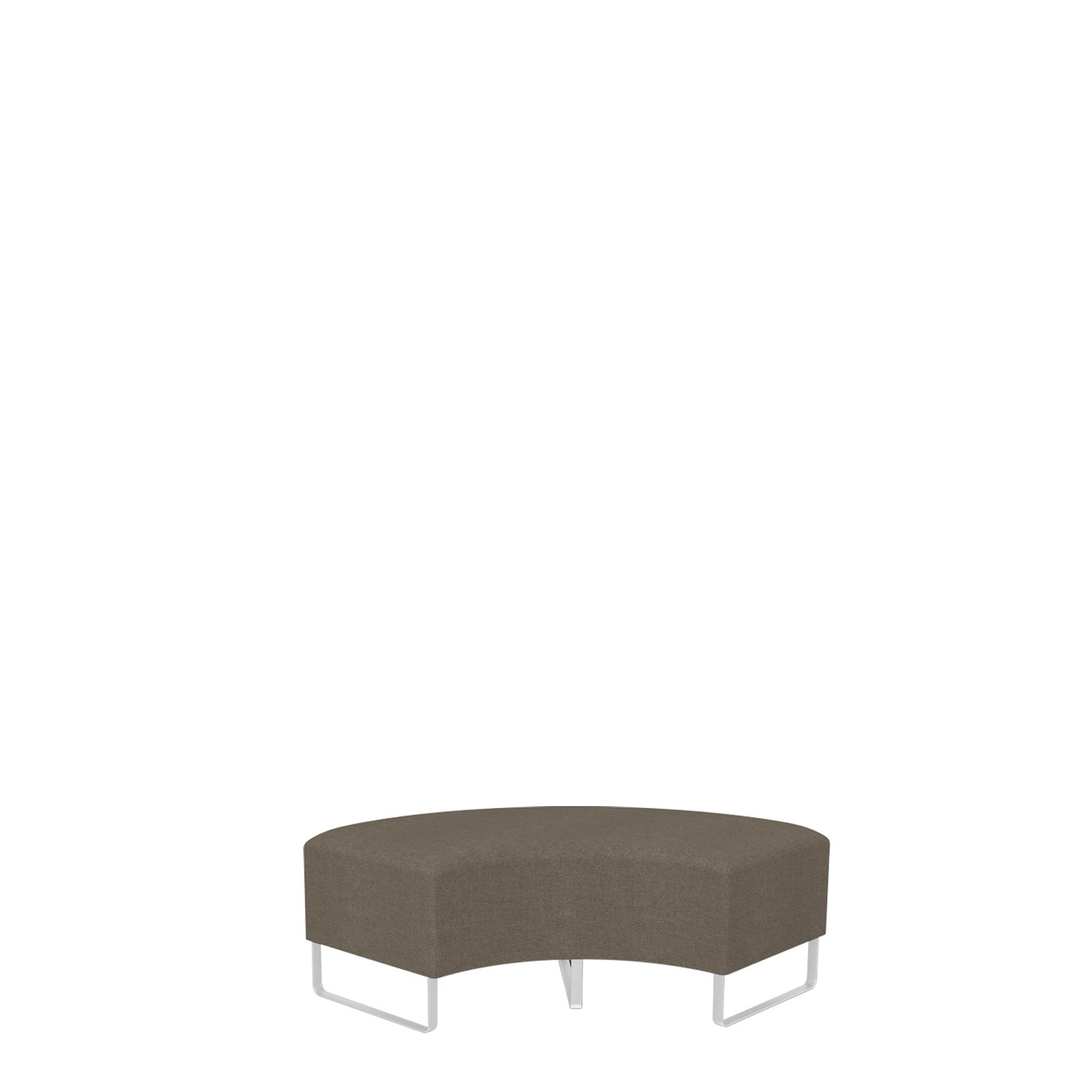

    angolare

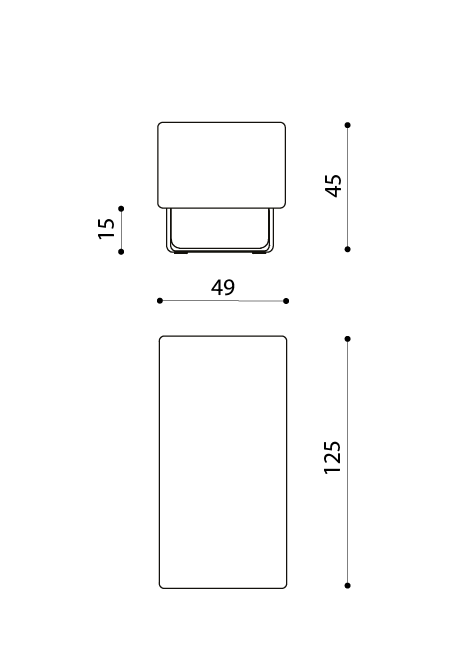

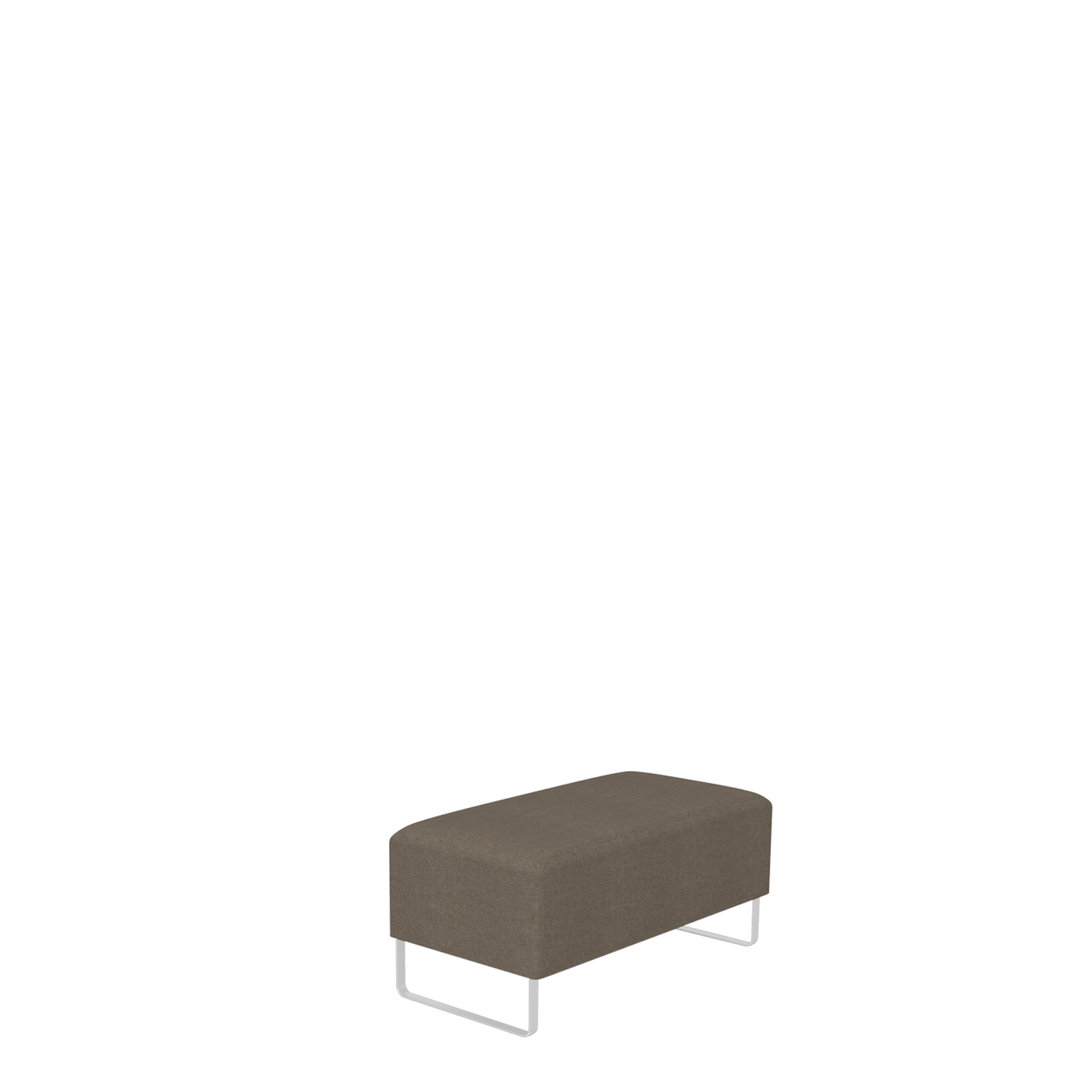

    rettangolare

    COMPLEMENTS

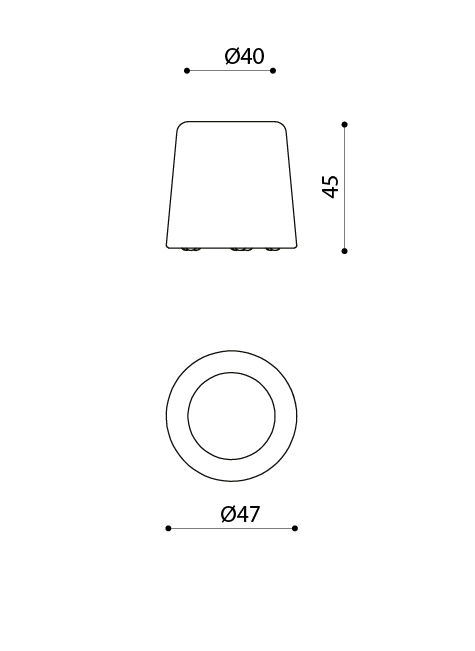

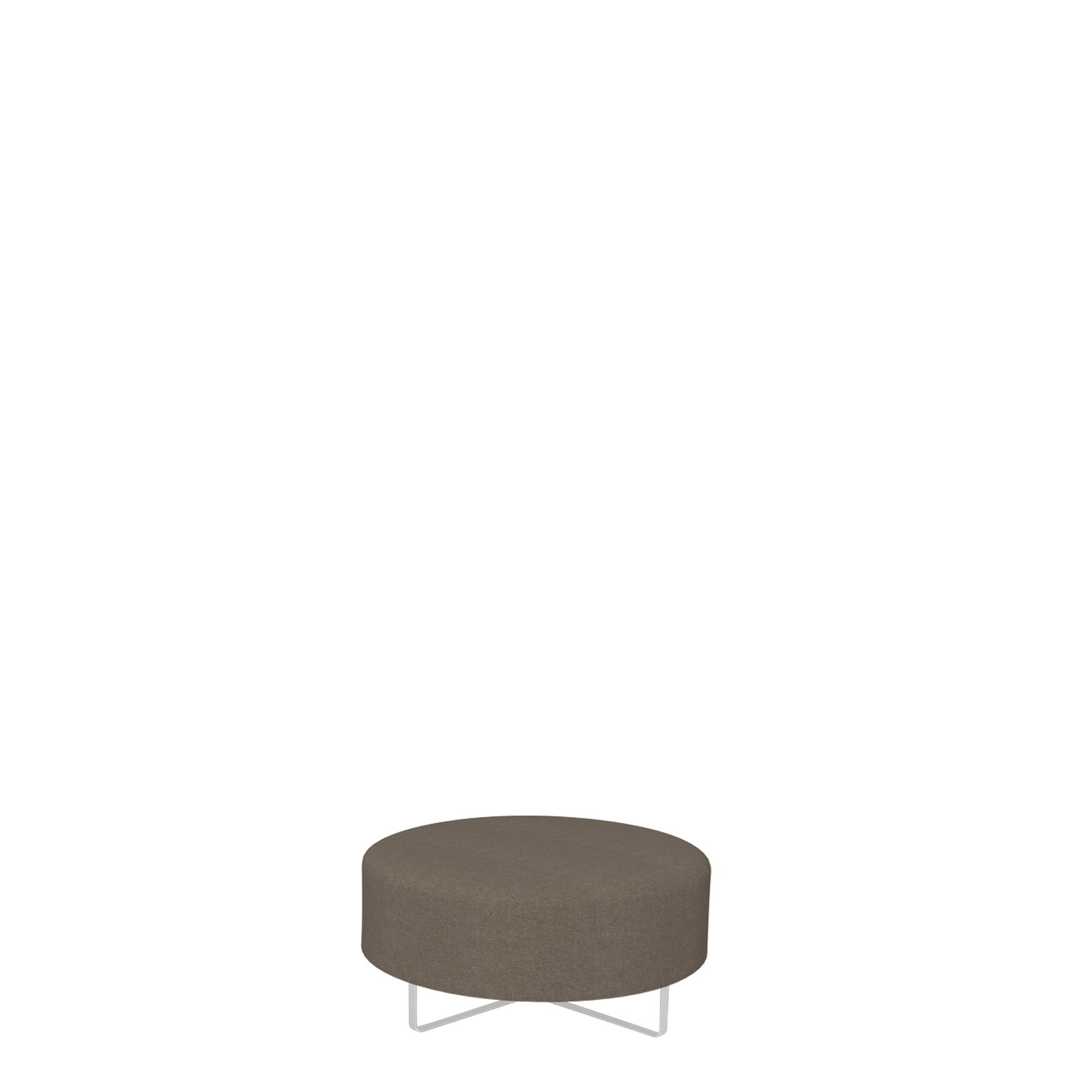

    pouf

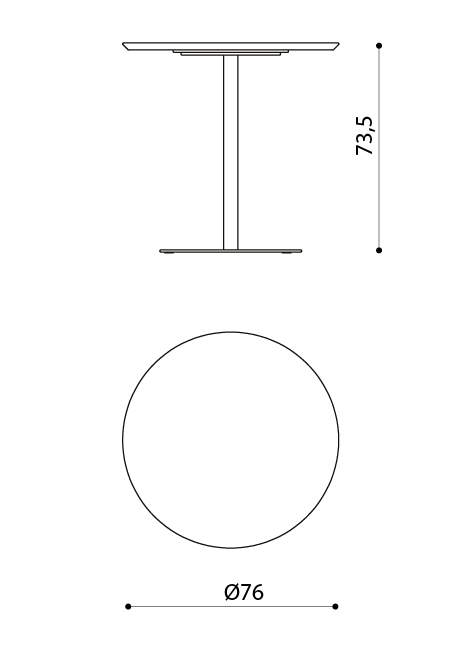

    side table

    Certifications



    We are the only Italian company offering a 7-year warranty on our products.

    Please contact the Quality and Environment office for information on the certificates available on the series.
