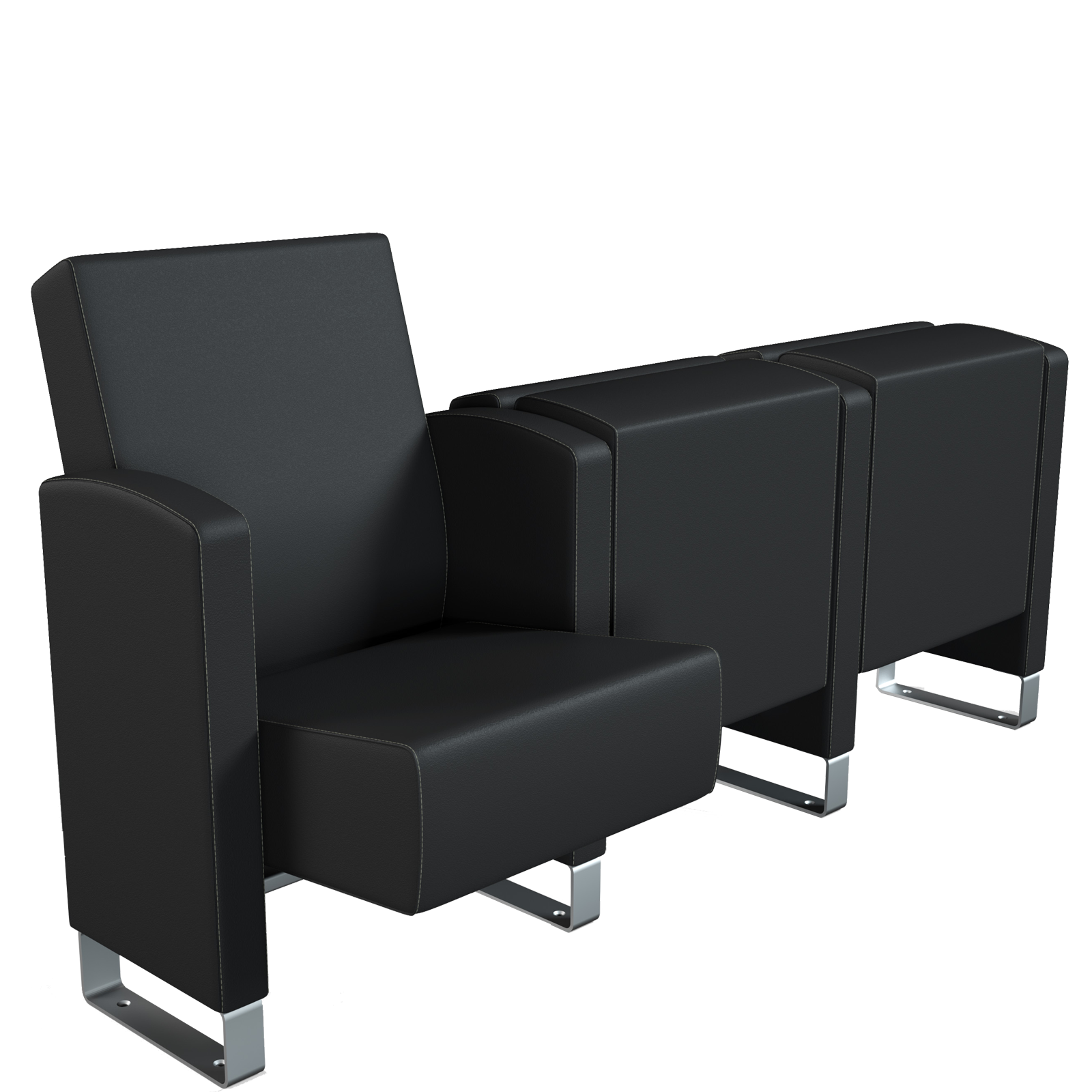

V9.syncron



V9. SYNCRON is the version of the V9 family with a special mechanism between the back and the seat to ensure it is as compact as possible, for the best design.

If interested, please contact us

*Campi obbligatori

Models



V9.9 can be customised to suit needs and style.

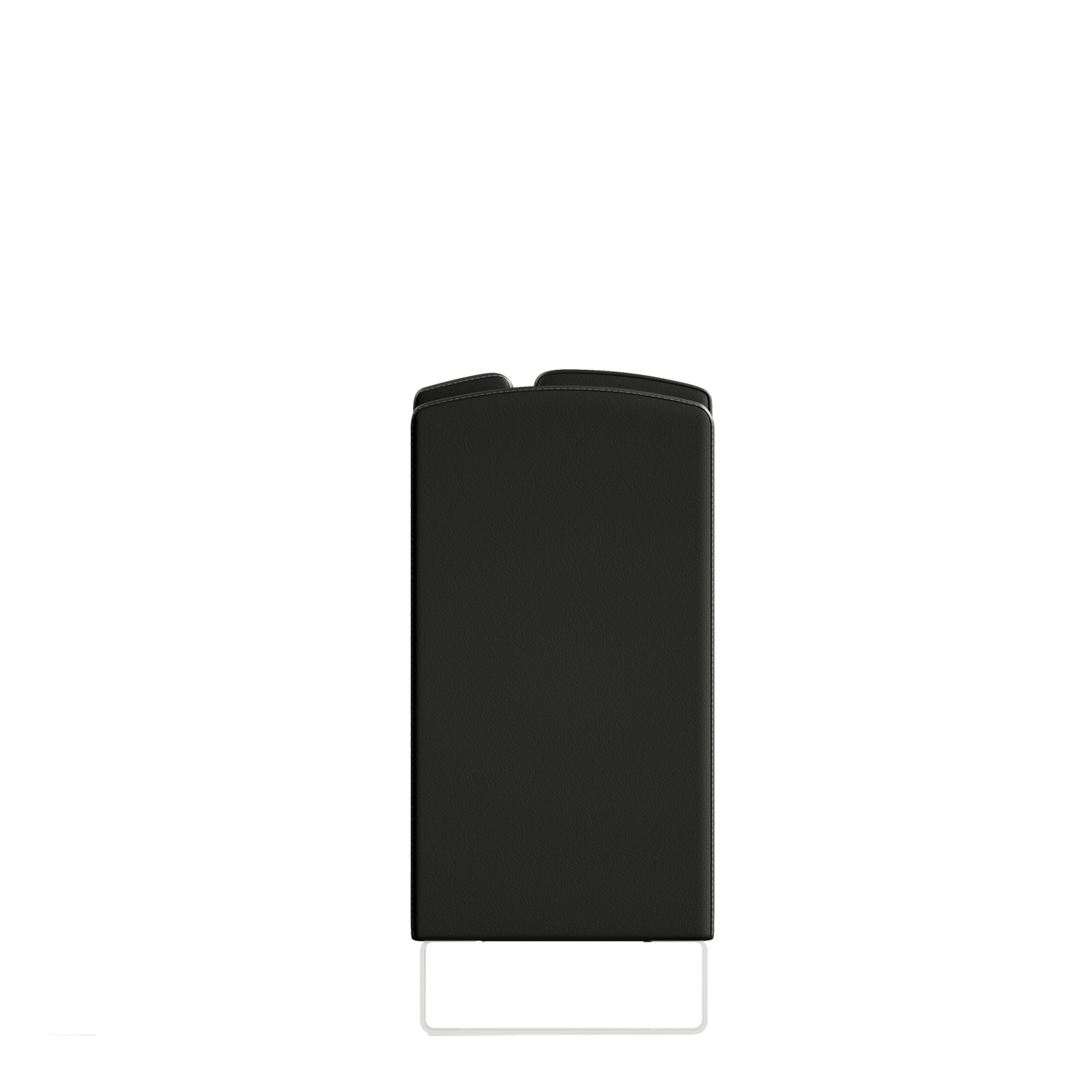

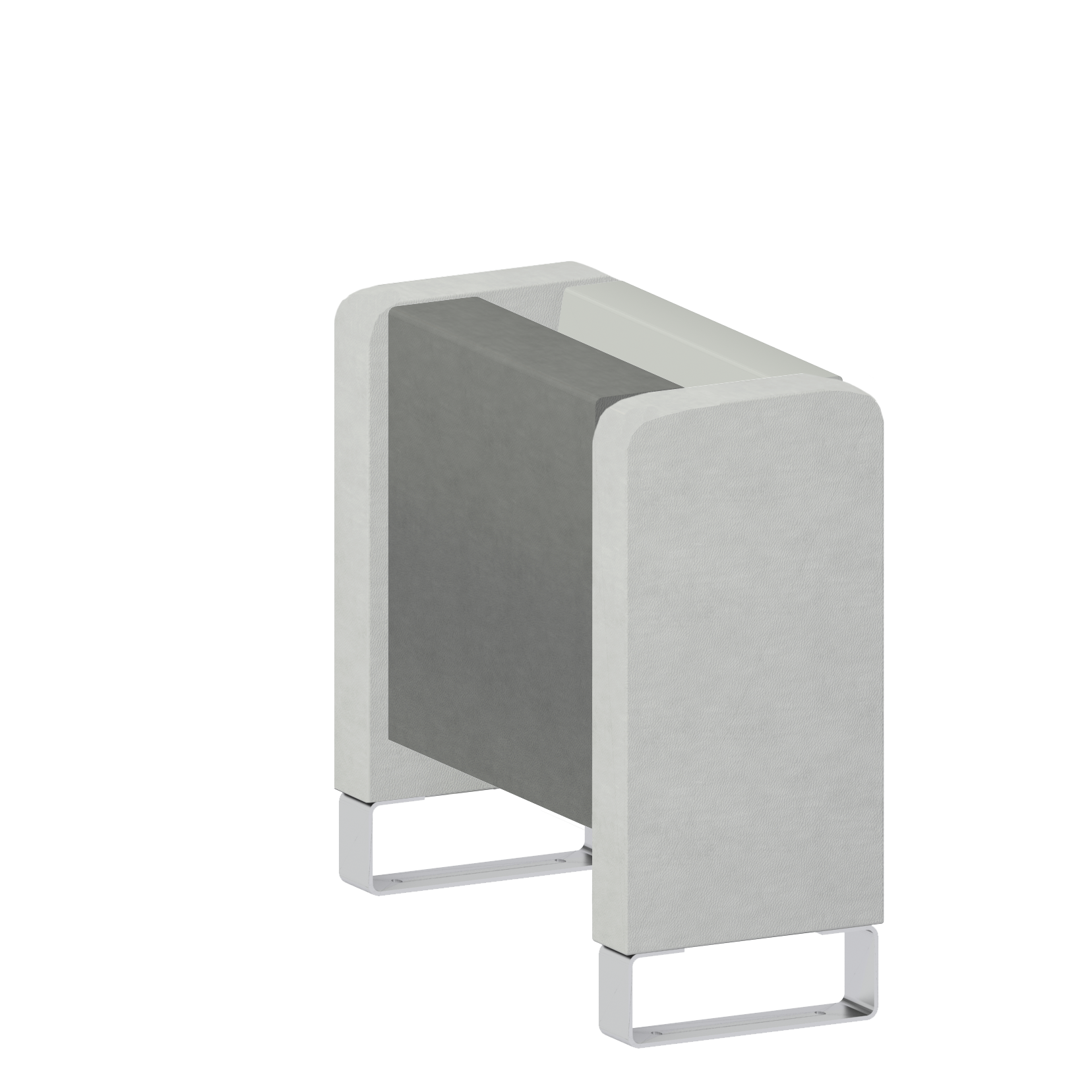

Starting with the side, V9.9 exists in the entirely upholstered BASE version, the WOOD version in wood or the AIR version with the unusual aerial foot that makes it lightweight.

The seat and the backrest can also be chosen in the basic and wood version.

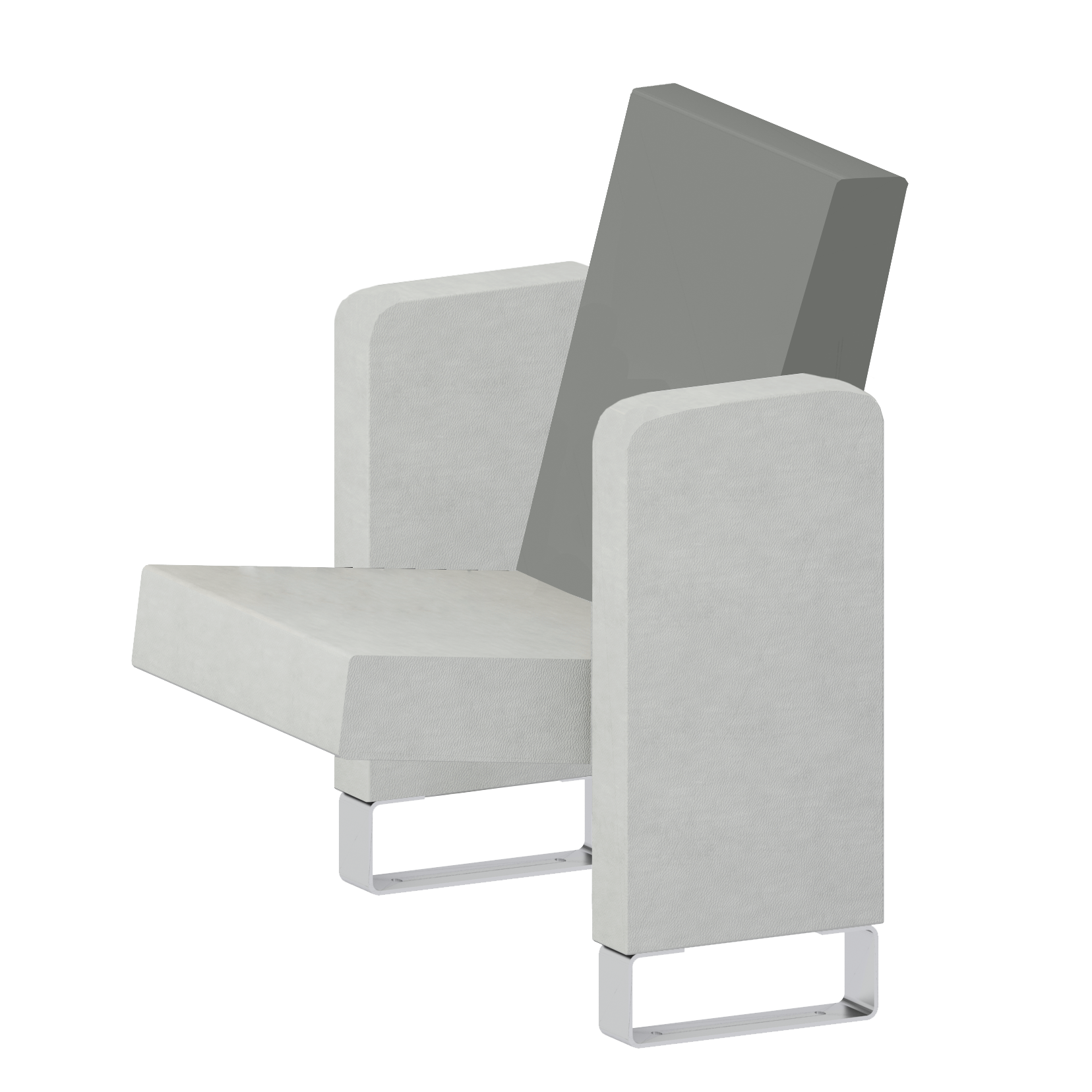

V9.syncron base

V9.syncron base

covered backrest
V9.syncron base

V9.syncron base

covered seat

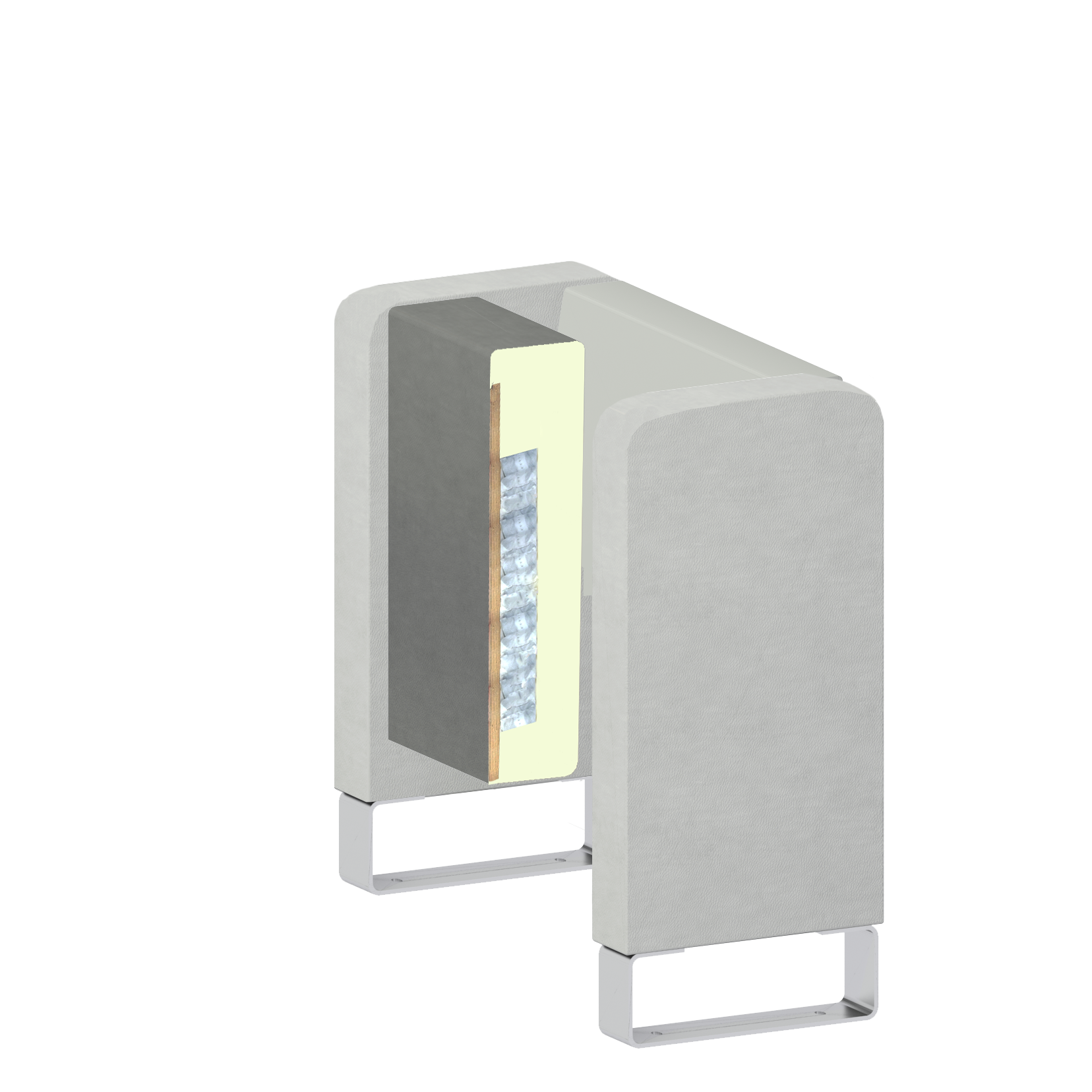

V9.syncron comfort

V9.syncron comfort

covered seat with micro-spring cushion insert

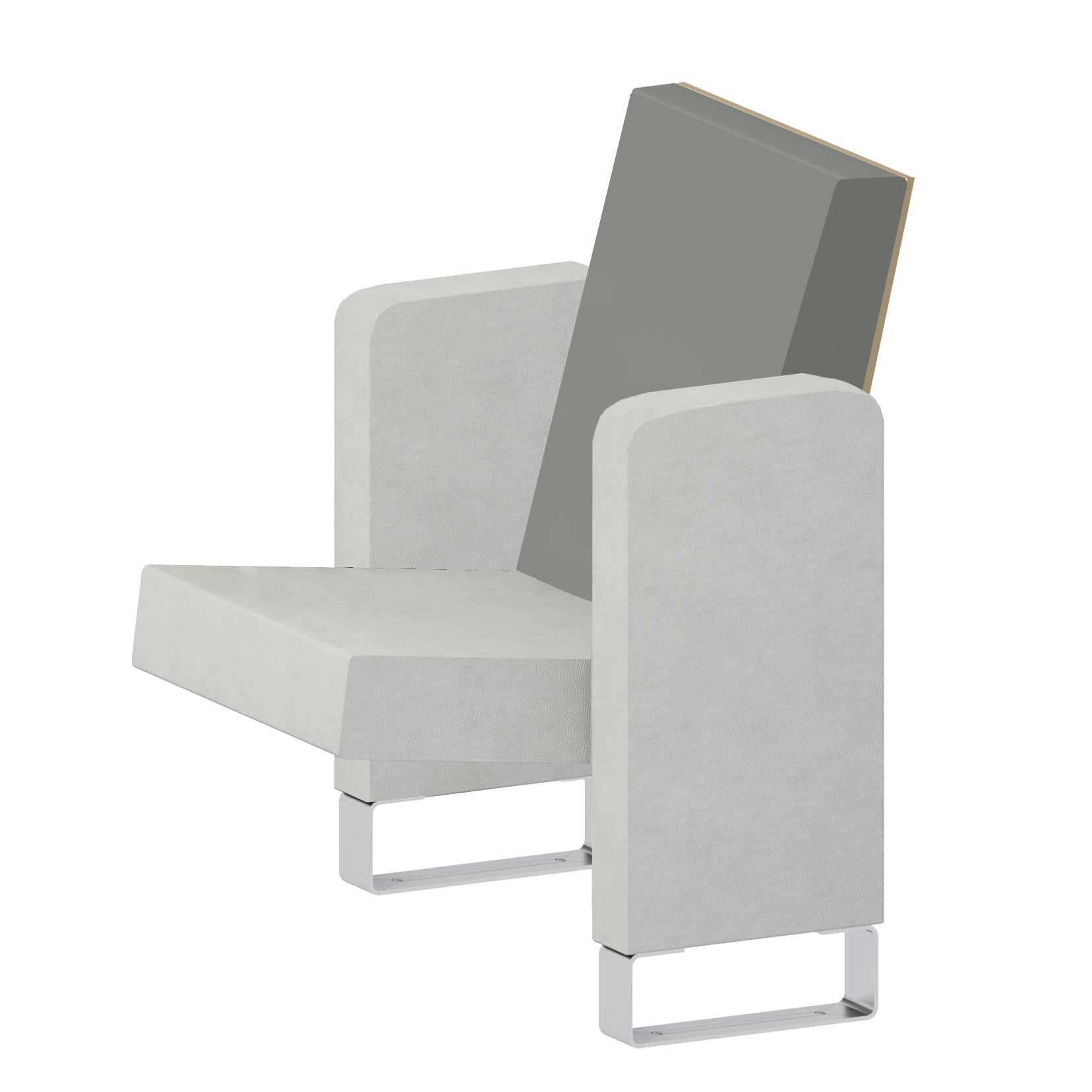

V9.syncron wood

V9.syncron wood

beechwood

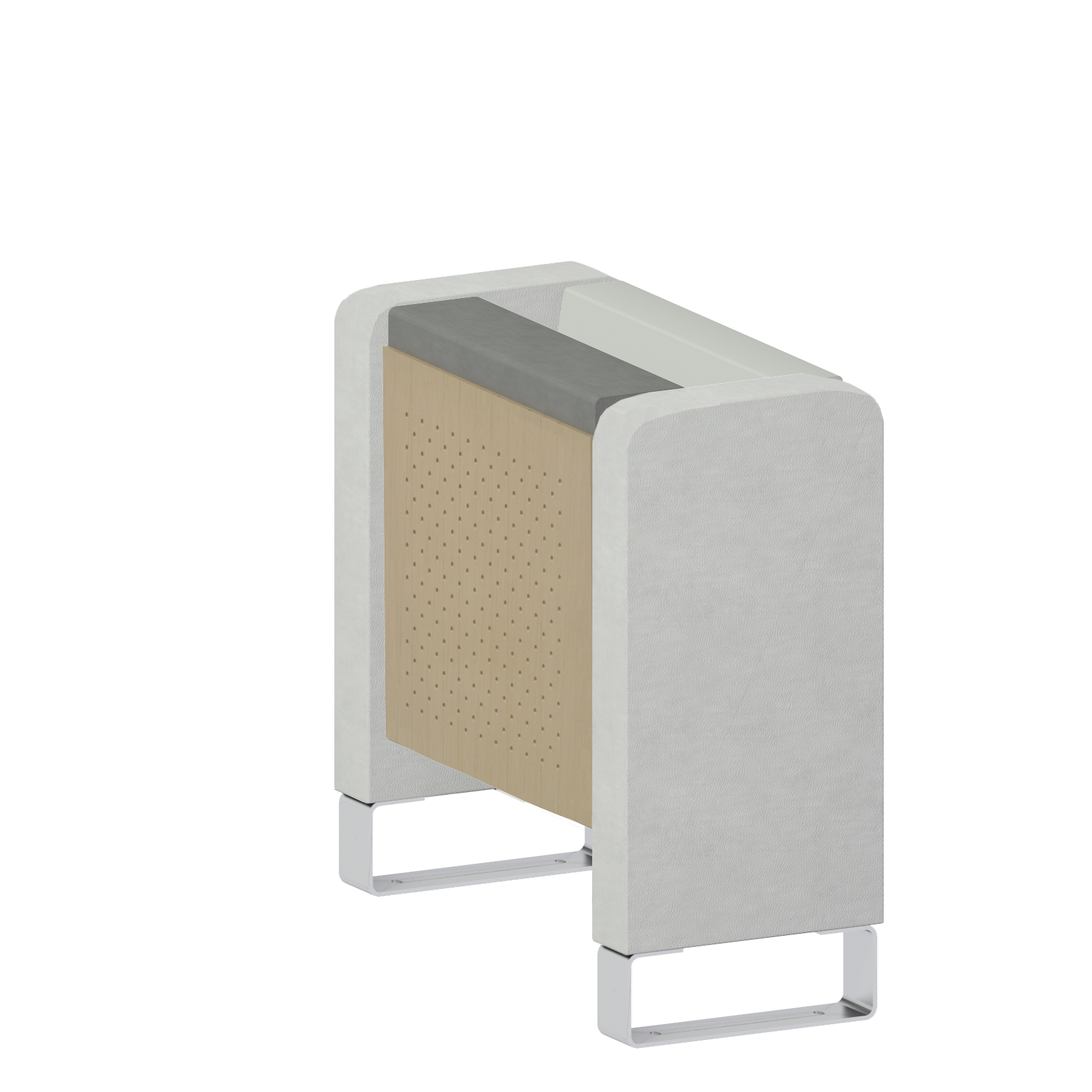

V9.syncron wood

V9.syncron wood

covered seat with panel under seat in beechwood

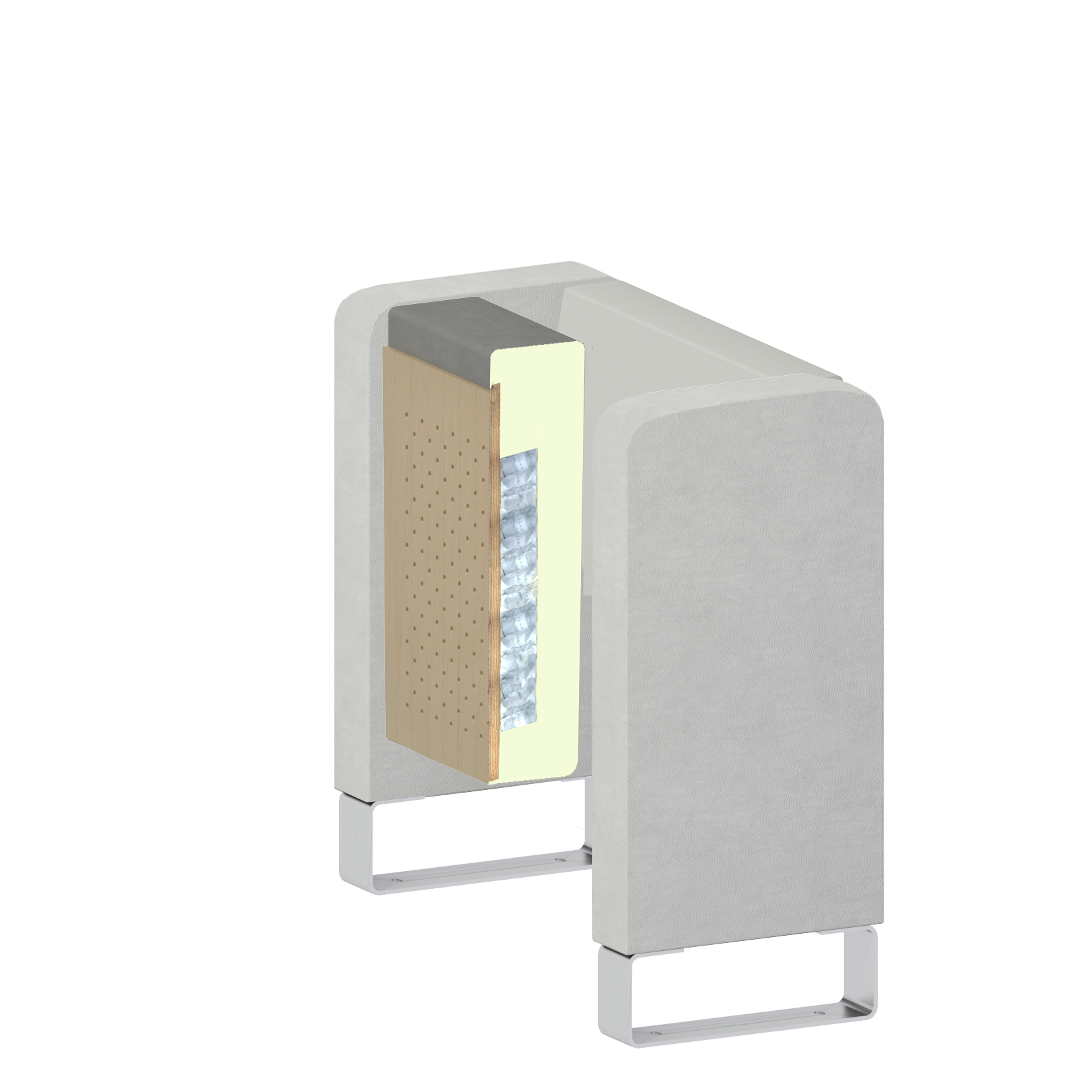

V9.syncron wood comfort

V9.syncron wood comfort

model wood covered seat with micro-spring cushion

Strengths

  • Ergonomic and practical, for the best use of space.
  • In just 29.9 cm, it is the only seat on which a large table can be installed
  • It is designed to be integrated perfectly with Tecno Frame Mobile: the telescopic platform which completes your space.
  • Perfect for the Flexseat system, which allows the seats to be concealed under the floor
  • 7-year warranty
  • Class 1IM reaction to fire

Tecno Frame Mobile



Tecno Frame Mobile is an innovative system of steps on guides and wheels to reconfigure your space in just a
few minutes. Tecno Frame Mobile is a Made in Italy product designed and manufactured by MASON s.r.l. a CDN partner.
A team of technical and sales consultants from MASON works with Ares Line to accompany you in all phases,
from conception to creation, installation and after-sales assistance.

Tecno frame mobile closed

Tecno frame mobile opening

Tecno frame mobile opened

Flexseat



Flexseat and the range of V9. seats have been designed together to allow the most dynamic use of spaces
with multiple uses (fair facilities, auditoriums, dance floors, museums, restaurants and many more). Flexseat
has been designed to create continuous rows, without having to double up arm-rests, up to a maximum of
9 seats. The product also includes multiple cabled or wireless control stations and the flooring and all the
finishes are chosen by the customer, within the structural limits of the system.
Flexseat is manufactured by DECIMA s.r.l., an Italian CDN partner company

Designer



BaccoliniDesign



Giovanni Baccolini has been working with Aresline on the creation of seating for workplaces and collective spaces since 1996.

Accessories

contrasting stitching

contrasting stitching

place and row numbering

place and row numbering

embroidered
place and row numbering

place and row numbering

heat-glued
logo

logo

embroidered on the seat backrest

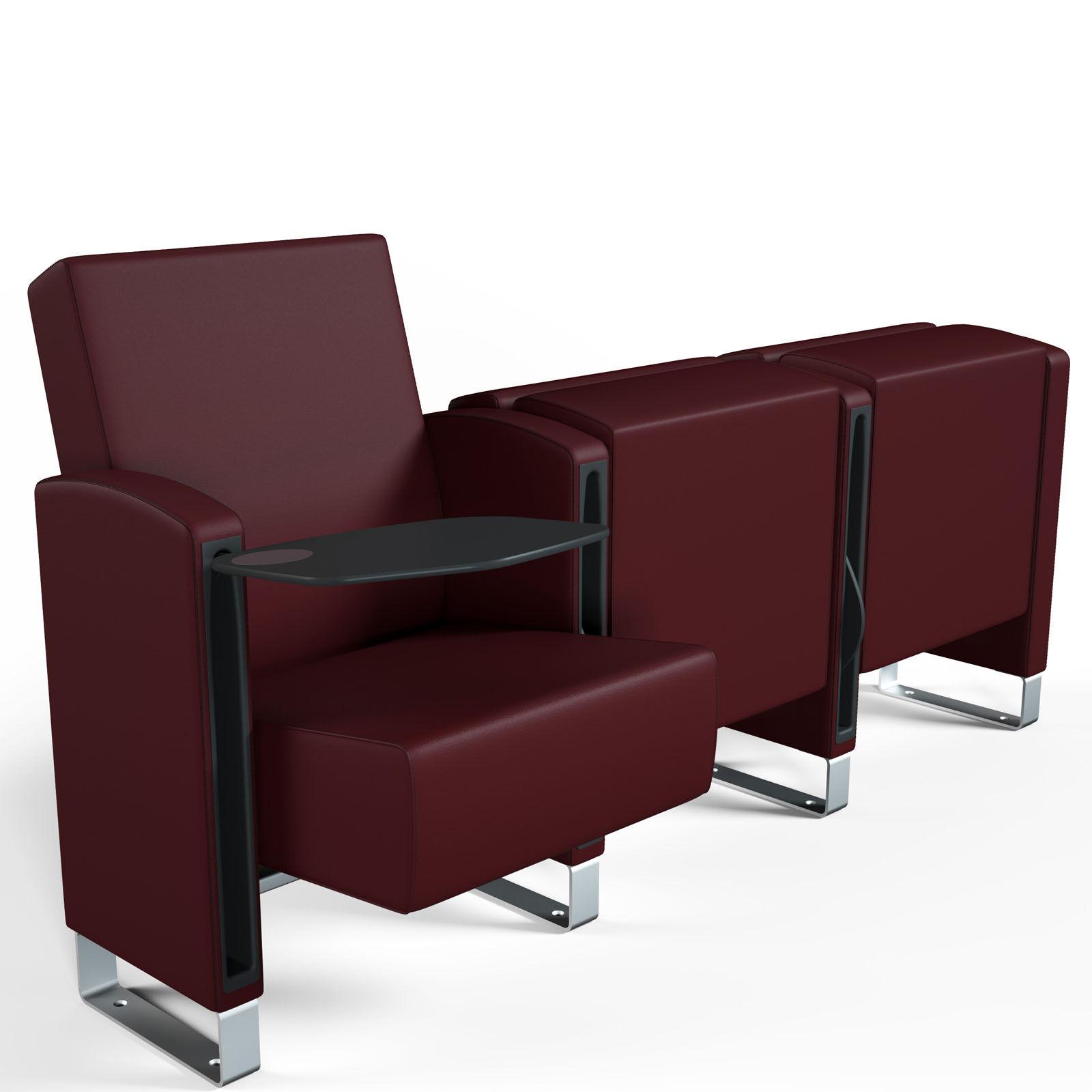

anti-panic table retractable into the side

anti-panic table retractable into the side

8mm table in black HPL

Dimensions (cm)

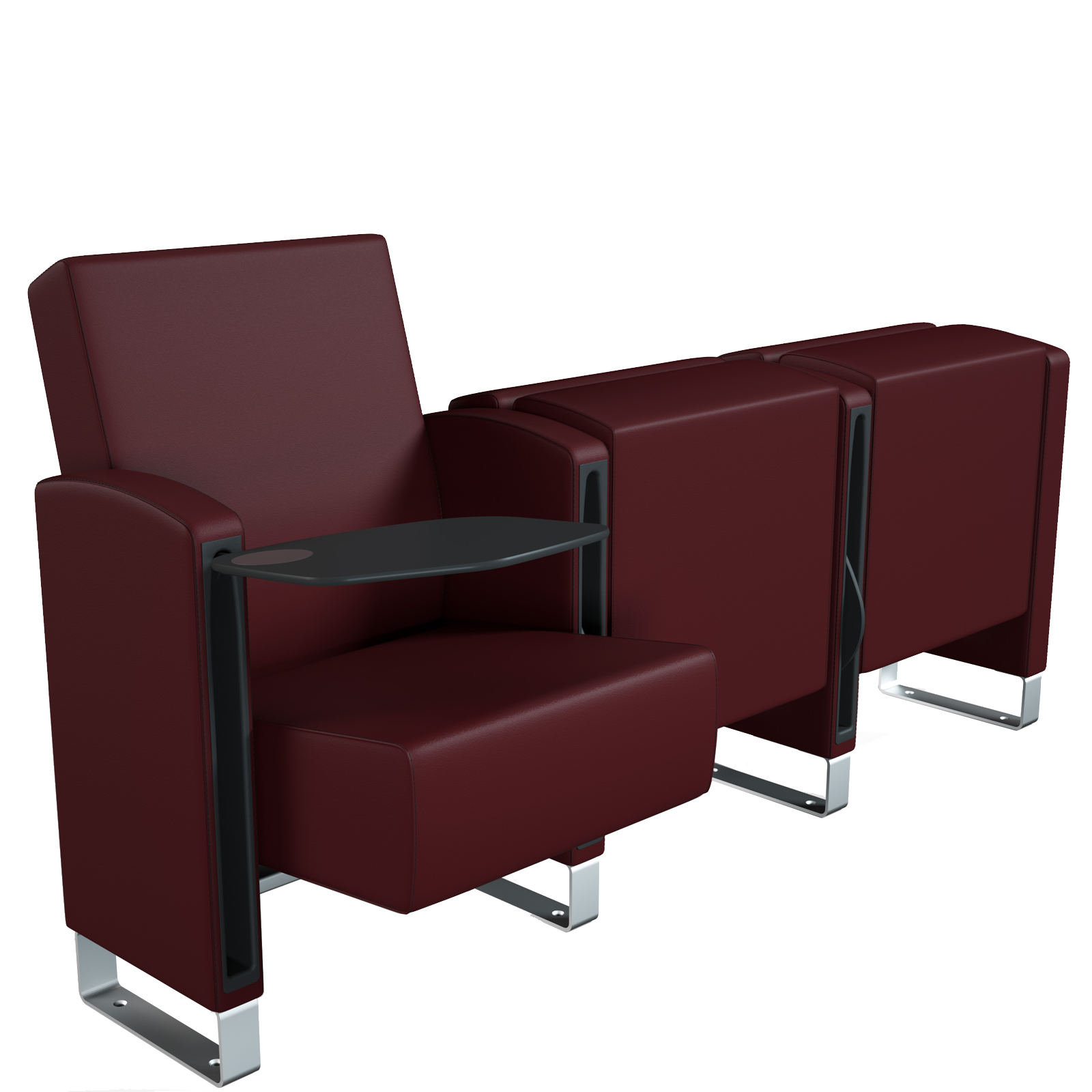

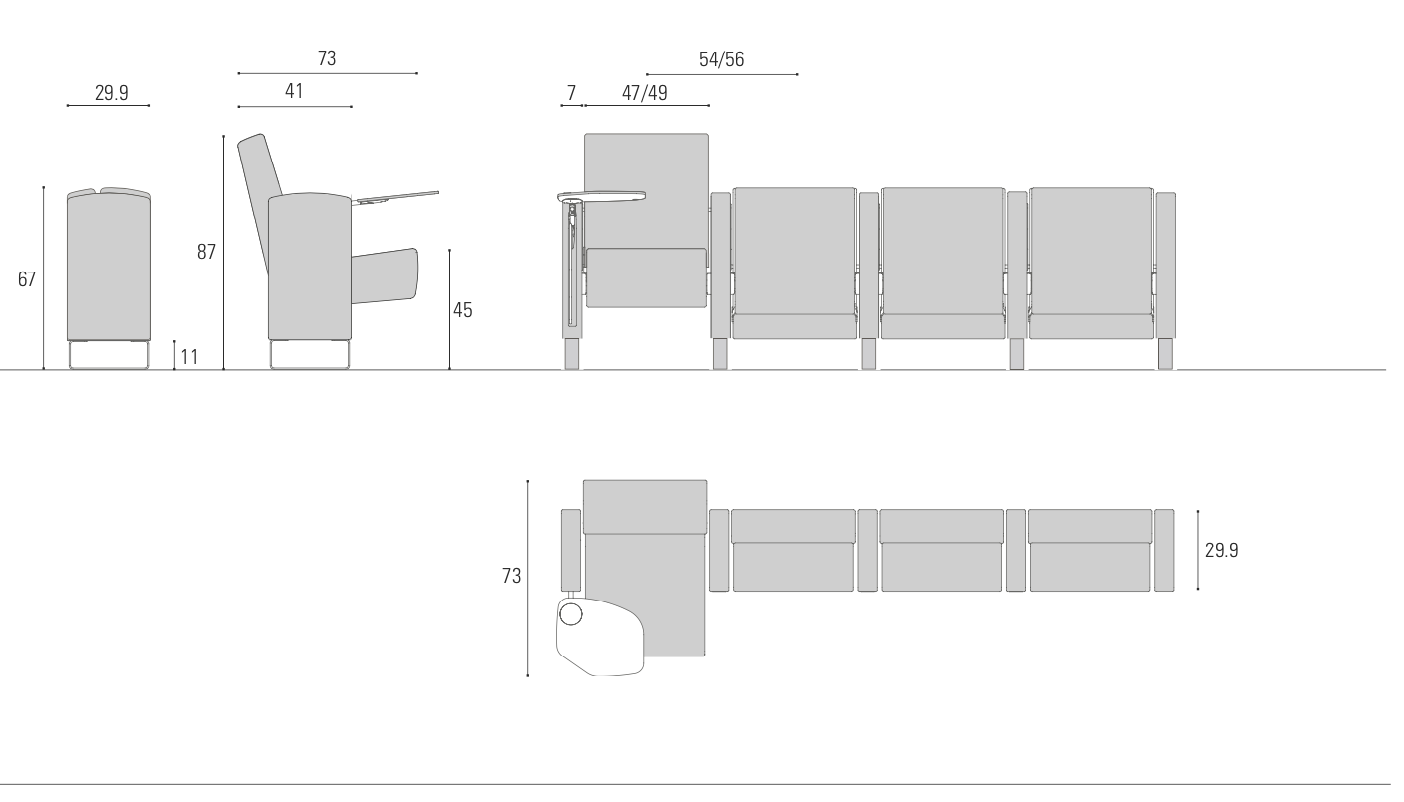

V9.syncron - 29.9 cm

Backrests: all

Seats: all

Sides: all

Accessories: all

Possible installations:

- space between rows min. 80cm (Italian regulation); recommended step height 40cm;

- installation on a curve: R<5m only for version with centre-to-centre distance of 54/56cm with double side; 5<R>20m only for version with centre-to-centre distance of 56cm (min. 100 places); R>20m for version with centre-to-centre distance of 54cm



Maximum gradient: max. 5% with tablet, max. 12% without tablet

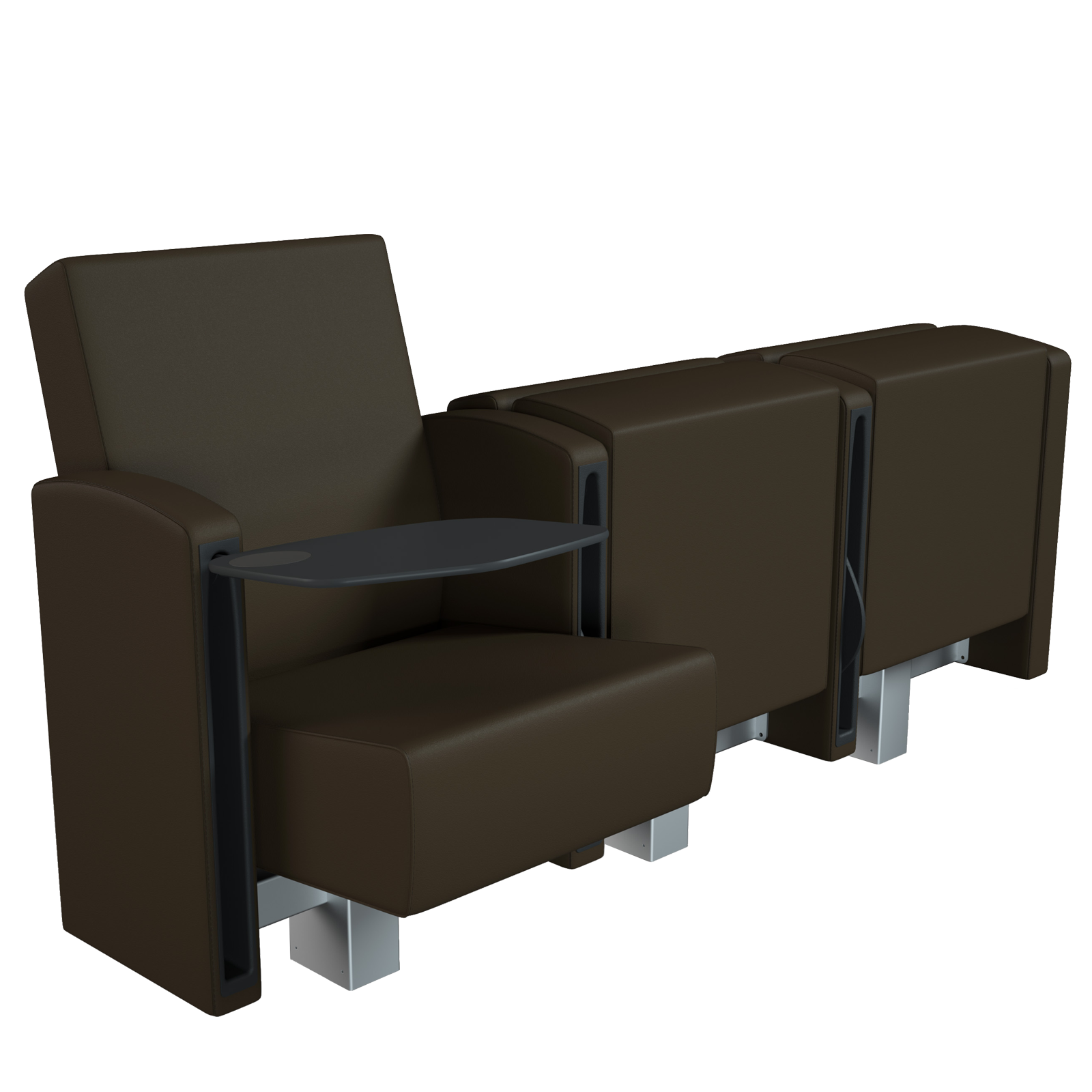

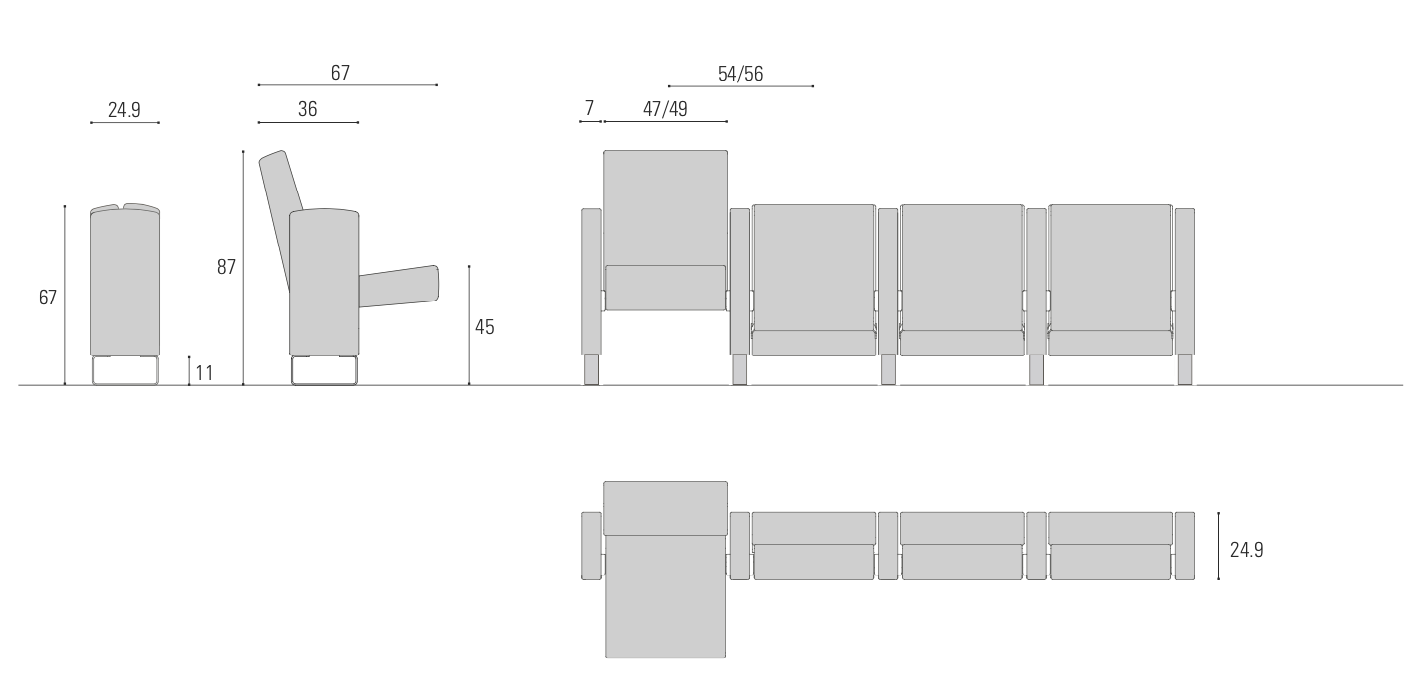

V9.syncron - 24.9 cm

Backrests: all

Seats: all

Sides: all

Accessories: not writing table

Possible installations:

- space between rows min. 80cm (Italian regulation); recommended step height 40cm;

- installation on a curve: R<5m only for version with centre-to-centre distance of 54/56cm with double side; 5<R>20m only for version with centre-to-centre distance of 56cm (min. 100 places); R>20m for version with centre-to-centre distance of 54cm



Maximum gradient: max. 5% with tablet, max. 12% without tablet

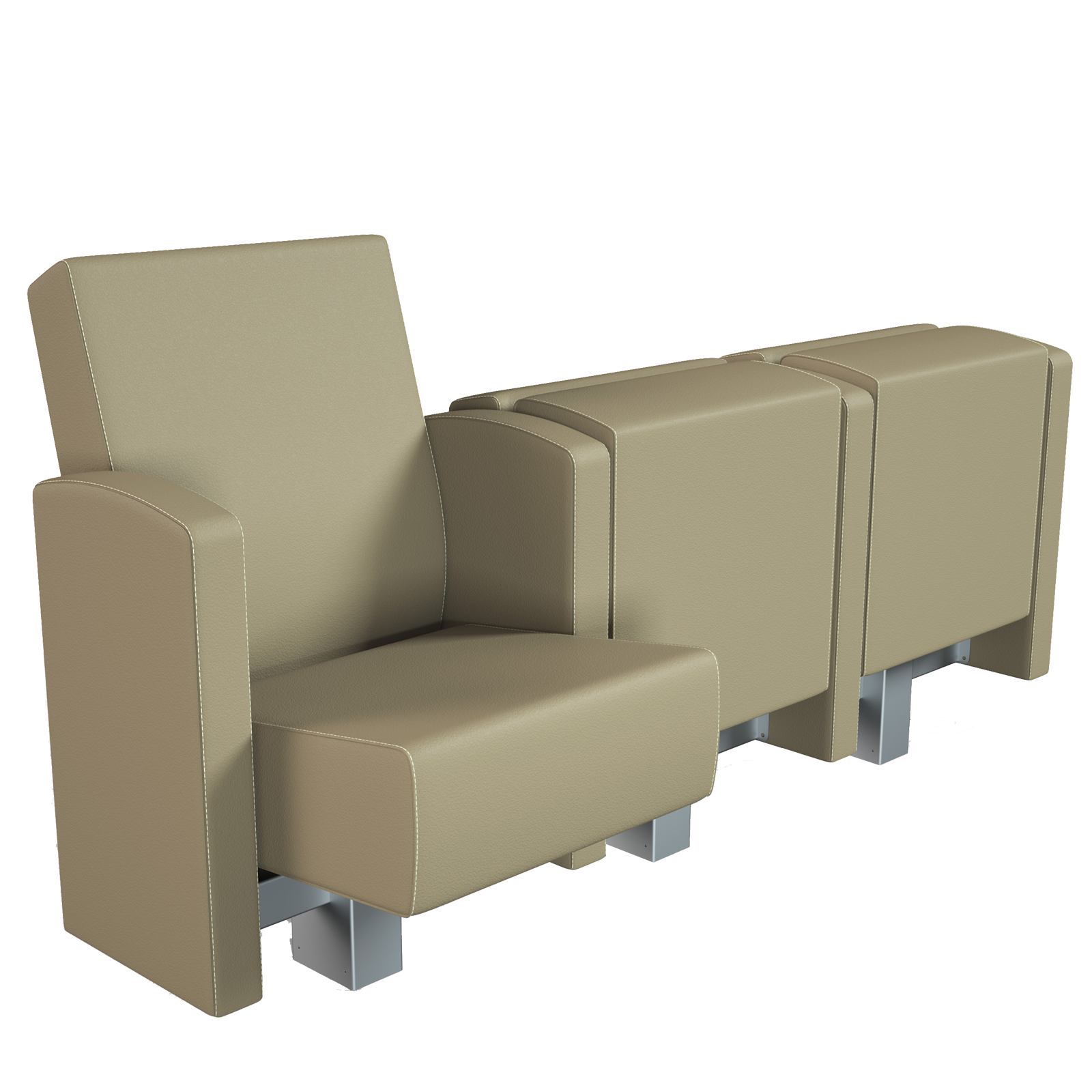

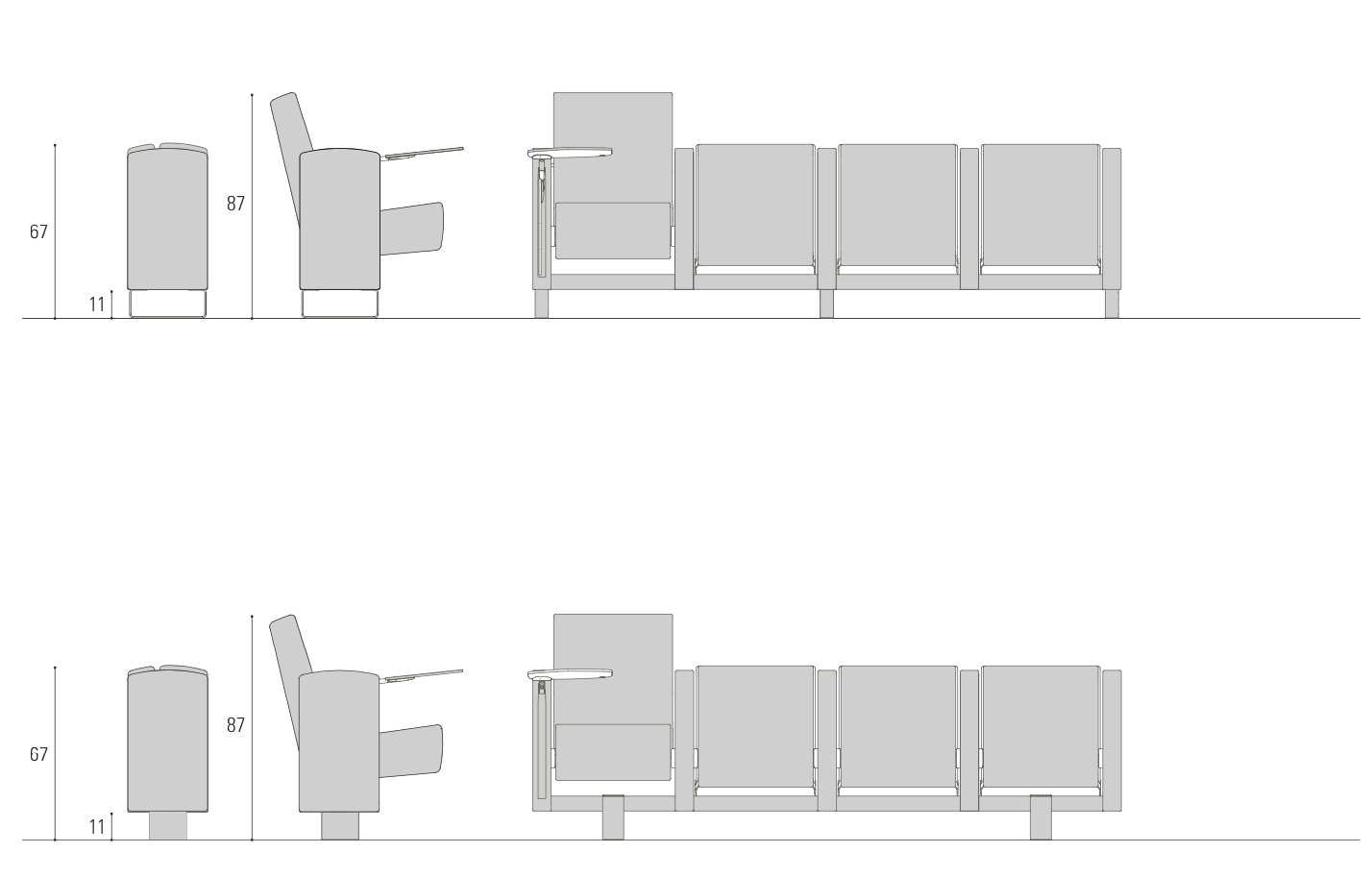

V9.syncron - on beam

Backrests: all

Seats: all

Sides: all

Accessories: not writing table

Possible installations:

- space between rows min. 80cm (Italian regulation); recommended step height 40cm;

- installation on a curve: R<5m only for version with centre-to-centre distance of 54/56cm with double side; 5<R>20m only for version with centre-to-centre distance of 56cm (min. 100 places); R>20m for version with centre-to-centre distance of 54cm



Maximum gradient: max. 5% with tablet, max. 12% without tablet

V9. Syncron on beam with central foot allows maximum freedom in attachment to the floor. The foot moves within the centre-to-centre distance of each seat to ensure it is compatible with any restriction on the floor. The foot is applicable every 2 (maximum 3) seats.

Certifications





We are the only Italian company offering a 7-year warranty on our products.

Please contact the Quality and Environment office for information on the certificates available on the series.
